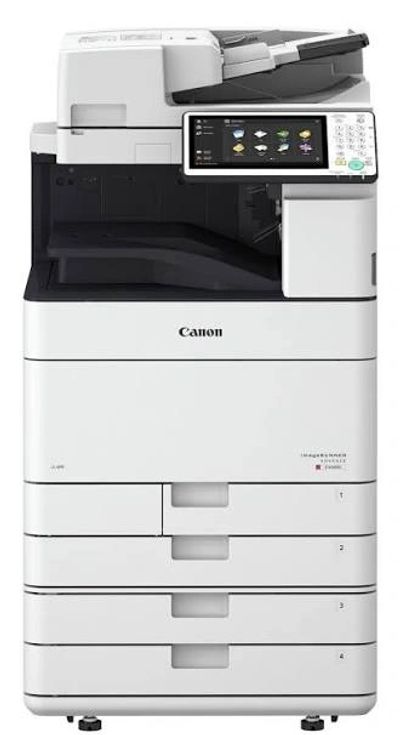

Canon ImageRunner Advance DX Error Codes
Default admin password 7654321
E001-0001-05 Main Thermistor High Temp Detection Error
E001-0002-05 Sub Thermistor F High Temp Detection Error
E001-0003-05 Sub Thermistor R High Temp Detection Error
E001-0004-05 Film Thermistor C High Temp Detection Error
E001-0005-05 Film Thermistor F High Temp Detection Error
E001-0006-05 Film Thermistor R High Temp Detection Error
E001-0007-05 Thermistor Overheating Error By Hardware Detection
E002-0001-05 Main Thermistor Temp Increase Error
E002-0002-05 Startup Control Timeout Error
E002-0003-05 Main Thermistor Temp Increase Error
E002-0004-05 Sub Thermistor F Temp Increase Error
E002-0005-05 Sub Thermistor R Temp Increase Error
E002-0006-05 Sub Thermistor C Temp Increase Error
E002-0007-05 Film Thermistor F Temp Increase Error
E002-0008-05 Film Thermistor R Temp Increase Error
E002-0009-05 Film Thermistor C Temp Increase Error
E002-0010-05 Film Thermistor F Temp Increase Error
E002-0011-05 Film Thermistor R Temp Increase Error
E003-0001-05 Main Thermistor Low Temp Detection Error
E003-0002-05 Sub Thermistor F Low Temp Detection Error
E003-0003-05 Sub Thermistor R Low Temp Detection Error
E003-0004-05 Film Thermistor C Low Temp Detection Error
E003-0005-05 Film Thermistor F Low Temp Detection Error
E003-0006-05 Film Thermistor R Low Temp Detection Error
E003-0007-05 Film Thermistor F/R Temp Difference Error
E004-0000-05 Error In Detecting DisconnectionOf The Thermistor
E004-0001-05 Fixing Relay Welding Detection Error
E004-0002-05 Fixing Assembly Non-Compatible Detection Error
E009-0001-05 Fixing Disengagement Timeout Error
E009-0002-05 Fixing Pressure Error
E012-0101-05 Drum Motor Startup Error
E012-0106-05 Drum Motor Rotation Error
E012-0201-05 Drum Motor Startup Error BK
E012-0206-05 Drum Motor Rotation Error BK
E012-0301-05 Drum Motor Startup Error ITB
E013-0001-05 Waste Toner Feed/Stirring Motor Speed Error
E013-0002-05 Waste Toner Feed/Stirring Motor Load Error
E014-0001-05 Fixing Motor Error
E014-0002-05 Fixing Motor Lock Error
E015-0003-05 Pre-registration Disengagement Timeout Error
E020-0124-05 ATR Output Error Y
E020-0134-05 ATR Output Error Y
E020-01A8-05 ATR Output Error Y
E020-01B8-05 ATR Output Error Y
E020-0224-05 ATR Output Error M
E020-0234-05 ATR Output Error M
E020-02A8-05 ATR Output Error M
E020-02B8-05 ATR Output Error M
E020-0324-05 ATR Output Error C
E020-0334-05 ATR Output Error C
E020-03A8-05 ATR Output Error C
E020-03B8-05 ATR Output Error C
E020-0424-05 ATR Output Error BK
E020-0434-05 ATR Output Error BK
E020-04A8-05 ATR Output Error BK
E020-04B8-05 ATR Output Error BK
E021-0100-05 Developing Motor Error Y
E021-0120-05 Developing Screw Rotation Detection Error Y
E021-0200-05 Developing Motor Error M
E021-0220-05 Developing Screw Rotation Detection Error M
E021-0300-05 Developing Motor Error C
E021-0320-05 Developing Screw Rotation Detection Error C
E021-0400-05 Developing Motor Error BK
E021-0420-05 Developing Screw Rotation Detection Error BK
E025-0110-05 Y Bottle Rotation Error
E025-0120-05 Y Toner Motor Stop Error
E025-0168-05 Y Toner Supply Error
E025-01C0-05 Y Toner Cartridge Inner Cover Open Detection Error
E025-0210-05 M Bottle Rotation Error
E025-0220-05 M Toner Motor Stop Error
E025-0268-05 M Toner Supply Error
E025-02C0-05 M Toner Cartridge Inner Cover Open Detection Error
E025-0310-05 C Bottle Rotation Error
E025-0320-05 C Toner Motor Stop Error
E025-0368-05 C Toner Supply Error
E025-03C0-05 C Toner Cartridge Inner Cover Open Detection Error
E025-0410-05 Black Bottle Rotation Error
E025-0468-05 BK Toner Supply Error
E025-04C0-05 BK Toner Cartridge Inner Cover Open/Close detection Error
E029-1000-05 Patch Sensor Error
E029-1001-05 Patch Sensor Error
E029-6001-05 Registration Shutter Solenoid Error
E064-1100-05 Y Charging Failure AC Error
E064-1101-05 Y Charging Failure DC Error
E064-1103-05 Y Developing Failure Error
E064-1200-05 M Charging Failure AC Error
E064-1201-05 M Charging Failure DC Error
E064-1203-05 M Developing Failure Error
E064-1300-05 C Charging Failure AC Error
E064-1301-05 C Charging Failure DC Error
E064-1303-05 C Developing Failure Error
E064-1400-05 BK Charging Failure AC Error
E064-1401-05 BK Charging Failure DC Error
E064-1403-05 BK Developing Failure Error
E073-0001-05 Power Supply Failure Error
E074-0001-05 Primary Transfer Disengagement Operation Timeout Error
E074-0002-05 Primary Transfer Engagement Operation Timeout Error
E100-0001-05 BD Unlocking Error
E102-0001-05 Startup EEPROM Checksum Error
E102-0002-05 Startup LS-EEPROM Model Matching Error
E102-0003-05 Startup Laser Unit Identification Error
E110-0001-05 Startup FG Lock Error
E110-0002-05 Startup BD Speed Lock Error
E110-0003-05 Startup BD Phase Lock Error
E110-0004-05 Startup Polygon Surface Detection Error
E110-0005-05 Startup Polygon Surface Identification Error
E120-1001-05 Power Supply Error 24V
E120-1003-05 Power Supply Error 3.3V
E120-1004-05 Power Supply Error 5V
E120-1005-05 Power Supply Error 1.5V
E120-3001-05 FFC Communication Error
E120-3002-05 FFC Communication Error
E120-4101-05 AD Sampling Value Error
E120-4102-05 AD Sampling Value Error
E120-4201-05 AD Sampling Value Error
E120-4202-05 AD Sampling Value Error
E120-4301-05 AD Sampling Value Error
E120-4302-05 AD Sampling Value Error
E196-0000-05 Communication Error
E196-0001-05 Communication Error
E196-0010-05 Restoration Error Main Controller PCB
E196-0102-05 Communication Error
E196-0202-05 Communication Error
E196-0302-05 Communication Error
E196-0400-05 Communication Error
E196-0402-05 Communication Error
E196-0500-05 Communication Error
E196-0502-05 Communication Error
E196-0602-05 Communication Error
E196-0702-05 Communication Error
E196-0802-05 Communication Error
E196-0902-05 Communication Error
E196-0A02-05 Communication Error
E196-0B02-05 Communication Error
E196-0C02-05 Communication Error
E196-0D02-05 Communication Error
E196-0E02-05 Communication Error
E196-0F02-05 Communication Error
E197-0B11-05 Serial Communication Error Cassette Pedestal
E197-2001-05 Serial Communication Error Feed Driver PCB
E197-2002-05 Serial Communication Error Drum Driver PCB
E197-2003-05 Serial Communication Error Drum Driver PCB
E197-2004-05 Serial Communication Error Drum Driver PCB
E197-2005-05 Serial Communication Error Lasar Scanner
E197-2006-05 Serial Communication Error ONEZE (Master/Slave Joined)
